Description

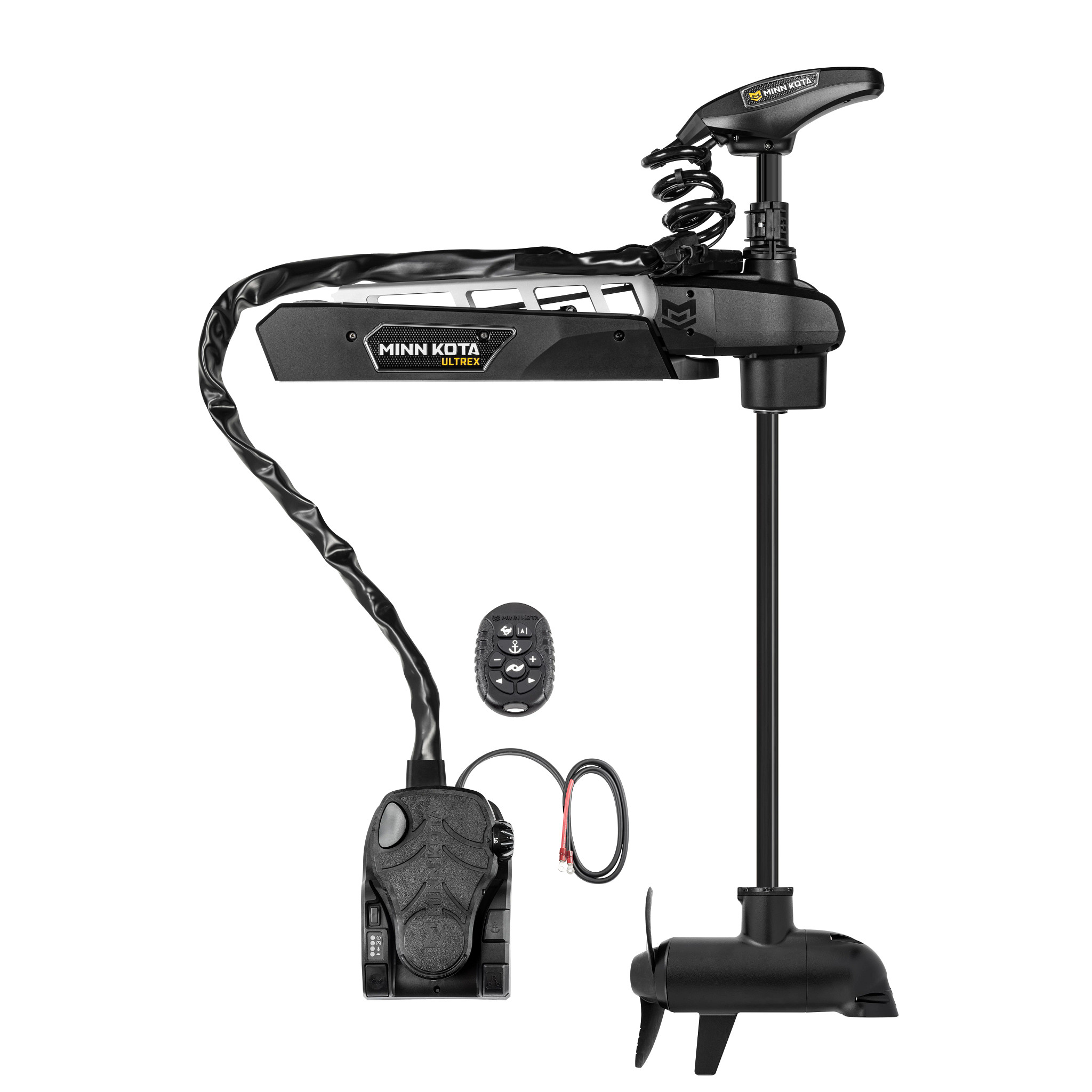

The Ultrex Quest is Minn Kota’s most significant bow-mount redesign in a decade — a brushless motor with 24V/36V field-configurable dual voltage, an integrated Humminbird MEGA Down Imaging and Side Imaging transducer running inside the shaft, and the Power-Stow auto-deploy bracket that raises and lowers the motor at the push of a button.
Live Specs Dashboard
| Operating Voltage | Peak Current Draw | Transducer Beam Angles | Network Intercompat. |
|---|---|---|---|
| 24V DC or 36V DC (field-configured) | ~50A @ 24V / ~40A @ 36V (peak) | MEGA DI: 2°–10° / MEGA SI: 150° lateral (75° per side) | Universal Sonar 2 (US2) ✓ / Humminbird NMEA 2000 ✓ |
Tech-Rig Compatibility & Rigging
Voltage Configuration — 24V vs. 36V
The Ultrex Quest ships in a single hardware SKU supporting both 24V and 36V operation. Voltage is selected via the motor’s configuration menu — no hardware swap required.
24V Configuration (Standard Bass Boat Setup): 2 × 12V batteries wired in series. Recommended capacity: 2 × 100Ah minimum (LiFePO4 preferred). Circuit breaker: 60A auto-reset on the positive lead. Wire gauge: 4 AWG under 10 feet; 2 AWG for 10–20 feet. Max thrust: 112 lb.
36V Configuration (Maximum Runtime + Efficiency): 3 × 12V batteries wired in series. Recommended: 3 × 100Ah LiFePO4. Circuit breaker: 50A auto-reset (lower amperage at higher voltage — same wattage). Wire gauge: 6 AWG under 10 feet; 4 AWG for 10–20 feet. Max thrust: 112 lb. Runtime improvement: ~35–40% more than 24V on same Ah bank.
MEGA DI/SI Integrated Transducer — Display Compatibility
The MEGA DI/SI transducer cable runs inside the motor shaft and exits at the motor mount as a Universal Sonar 2 (US2) connector — directly and exclusively for Humminbird displays with a US2 port.
Compatible displays (US2 port required): Humminbird HELIX 10, 12, 15 (MEGA SI+ G3N, G4N or later) and SOLIX 10, 12, 15 (MEGA SI+ models).
NOT compatible via US2: Garmin, Lowrance, Simrad. Use a separate pole-mounted transducer for those platforms.
MEGA Live compatibility: The integrated US2 cable carries MEGA DI + MEGA SI only. For MEGA Live Imaging (forward-facing live sonar), mount a separate MEGA Live transducer via pole/IPS bracket.
Power-Stow Bracket
Mounting footprint: 6″ × 9″. The Power-Stow actuator requires a separate 12V accessory circuit (~10A peak during stow/deploy) — do not run this from the trolling motor battery bank.
i-Pilot Link Bluetooth — Humminbird Integration
i-Pilot Link pairs with Humminbird HELIX/SOLIX displays via Bluetooth once paired: full motor control from the chart screen, Spot-Lock positions visible as waypoints on the Humminbird chart, and Follow-The-Track control from the Humminbird route planner. Requires HELIX software 3.00+ or SOLIX 2.00+.
Why Tournament Anglers Buy the Ultrex Quest
- Brushless Runtime Advantage: ~35–40% more runtime at mid-throttle vs. the previous brushed Ultrex on the same battery bank. On a 24V/200Ah LiFePO4 bank: 10–12 hours of mixed tournament fishing.
- MEGA DI/SI Eliminates External Transducer Runs: One US2 cable at the motor mount carries MEGA DI + MEGA SI to your HELIX or SOLIX. Zero external cable clutter, no secondary transducer pole.
- 24V/36V in One SKU: One motor, two voltage options, no swap required — just reconfigure in the menu. Both the Force Pro and Ghost X require separate SKUs per voltage.
- Power-Stow One-Button Deploy: Push a button at the no-wake zone: stow. Push at the first fishing spot: deploy. No lifting 30 lb in the dark at 5AM.
- Brushless EMI Reduction: Less electromagnetic interference on nearby sonar systems compared to brushed motors — LiveScope, MEGA Live, and ActiveTarget 2 all image cleaner alongside a brushless motor.
Technical Specifications
| Spec | Value |
|---|---|
| Motor Type | Brushless DC |
| Thrust | 112 lb |
| Voltage | 24V or 36V (field-configurable, single SKU) |
| Runtime vs. Brushed | ~35–40% at mid-throttle |
| Integrated Sonar | MEGA Down Imaging + MEGA Side Imaging |
| Sonar Frequencies | MEGA 1.2 MHz DI/SI + CHIRP 50/83/200 kHz |
| Sonar Connector | Universal Sonar 2 (US2) — Humminbird displays only |
| GPS | i-Pilot Spot-Lock + i-Pilot Link Bluetooth |
| Stow/Deploy | Power-Stow (electric actuator) |
| Shaft Lengths | 45″, 52″, 60″, 72″ |
| Weight (72″ shaft) | ~32 lb |
| Warranty | 3-year Minn Kota USA |
